When every square meter counts, your shower enclosure cannot be the weak link. KJbath manufactures corner shower enclosures — diamond (neo-angle), quadrant, and square-corner — with CNC-cut glass tolerances down to ±0.5 mm, full-length magnetic seals, and tempered glass certified to EN12150, SGCC/ANSI Z97.1, or AS/NZS 2208 for your target market. Built in Foshan, China, for hotel, apartment, and distribution programs worldwide.
“Trusted by buyers from more than 190 countries since 1999.”
Across Europe, the Middle East, and Asia-Pacific, the 2026 bathroom trend reports point the same way: households are getting smaller, new-build bathrooms are shrinking, and the bath-to-shower conversion continues. Industry trend analyses for 2026 highlight corner and sliding enclosures as the default answer for compact footprints, with matte black profiles, frameless looks, and easy-clean hydrophobic glass leading specification lists. For developers and distributors, this demand shift has a sharp edge: compact corner units concentrate water around multi-angle joints, and buyer-review analysis consistently ranks water leakage and installation difficulty as the two most frequent complaints in this category.
Corner and quadrant layouts recover floor area that swinging doors waste — critical in 3 m² apartment bathrooms.
Matte black and minimal-profile frames are the 2026 specification default in urban residential and boutique hotel projects.
Hydrophobic easy-clean coatings are now a mainstream selling point, marketed as cutting glass cleaning time by up to 90%.
Neo-angle joints and curved tracks are exactly where poor manufacturing shows up first — as leaks, callbacks, and 1-star reviews.
That is why we engineer the corner category around fit, sealing, and installation tolerance — not just appearance.
Every corner unit lives or dies by three tolerances: the glass radius, the profile extrusion, and the hardware interface. Here is how we control each one — see our manufacturing process for the full workflow.

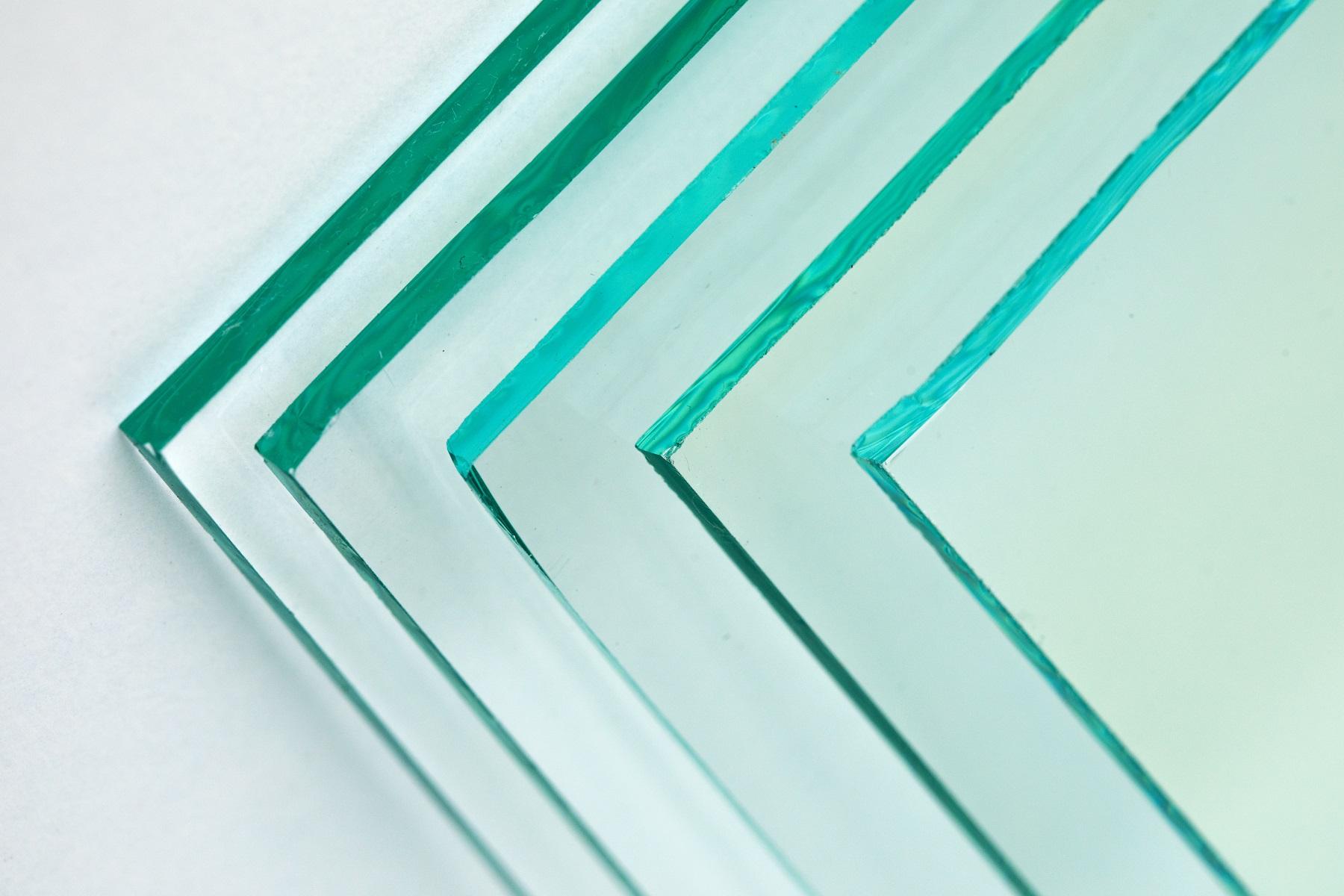

Our corner shower glass enclosures use 6 mm or 8 mm fully tempered safety glass, processed on CNC cutting lines with dimensional tolerance held to ±0.5 mm and water-jet hinge cut-outs at 0/+1 mm. For quadrant curved panels, the bending curvature deviation is controlled within 0.15%, so the glass seats into the aluminum track without forced fitting. Glass fragmentation granularity at tempering is held in the 55–85 piece range per standard test area — the difference between a safe crumble and a dangerous shard pattern.
Spontaneous breakage from nickel-sulfide inclusions is a real, documented risk in tempered glass. For hotel and high-rise residential programs where a single breakage event is unacceptable, we offer Heat Soak Tested (HST) glass to EN 14179 — an accelerated screening process that industry sources cite as reducing spontaneous breakage risk to below 1 in 10,000 panels.
Wall profiles are extruded from 6463-grade aluminum (bright-anodizing grade, hardness 11–13 HW), with slotted wall channels giving up to 20 mm of per-side adjustment to absorb out-of-plumb walls. Rollers, hinges, and handles are SUS304 stainless steel or brass with optional PVD finishes (matte black, brushed gold, gunmetal). Every hardware batch is benchmarked against our internal 72-hour salt spray test before approval — a core reference point for coastal and high-humidity hotel projects.
Glass and enclosure configurations are documented against your market: CE/EN12150-1 and EN14428 enclosure performance for Europe, SGCC/ANSI Z97.1 for North America, AS/NZS 2208 for Australia. Certification marks are permanently etched on glass — a detail customs brokers and building inspectors actively check. Learn more about SGCC / CE certification.
For multi-family developments, one leaking neo-angle joint means tenant complaints, ceiling damage below, and warranty cost on your side. Our corner enclosures treat water containment as four coordinated details:
On diamond and pivot models the door stays positively closed along the entire closing edge — not just at the latch point.
The lower rail is profiled to channel run-off water back inside the shower zone, avoiding the pooling and mold complaints that dominate negative reviews of poorly designed budget units.
Acrylic or SMC trays manufactured to the same footprint drawing as the enclosure, so the glass line and the tray’s water barrier align from the base upward.
Assembled corner units are checked under spray conditions as part of final inspection, so sealing performance is verified before packing, not discovered on site.
Three geometries solve three different layout problems. The cards and table below are the same selection logic we walk project buyers through.
Angled front entry minimizes the door swing radius while keeping a spacious interior feel — the premium look for modern developments.

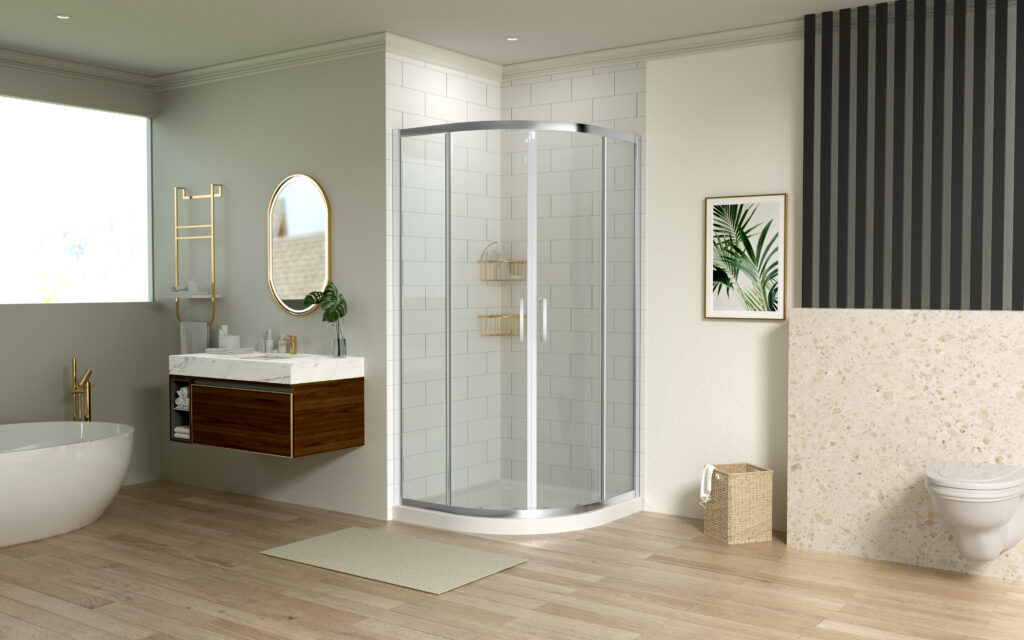

Curved sliding doors require zero outward clearance — the ultimate space-saver for the most compact bathroom footprints.
Double-sliding or dual-pivot entry delivers maximum entryway width without encroaching on vanity or toilet spaces.
| Dimension | Diamond (Neo-Angle) | Quadrant (Sector/Curved) | Square Corner |
|---|---|---|---|
| Typical footprint | 900×900 – 1000×1000 mm | 800×800 – 1000×1000 mm | 900×900 – 1200×1200 mm |
| Door type | Pivot / hinged, angled front | Curved sliding (zero swing) | Double sliding or dual pivot |
| Door clearance needed | Small swing arc | None (slides in track) | None to minimal |
| Glass spec | 6/8 mm tempered, flat | 6/8 mm tempered, curved (≤0.15% curvature deviation) | 6/8 mm tempered, flat |
| Best for | Modern hotel & apartment spec; premium look | Tightest footprints; micro-apartments | Wider entry; accessible layouts |
| Watch-out | Multi-angle joints need magnetic seals | Curved glass/track fit precision | Door width vs. vanity clearance |
One reference table for your RFQ — every line can be configured per model and per target market.
| Item | Standard Configuration | Options |
|---|---|---|
| Glass thickness | 6 mm / 8 mm tempered | 10 mm on request |
| Glass standard | EN12150-1 (CE) | SGCC / ANSI Z97.1 (US), AS/NZS 2208 (AU), Heat Soak EN 14179 |
| Glass finish | Clear | Low-iron ultra clear, frosted, acid-etched, grey/bronze tint |
| Surface treatment | — | Easy-clean nano (hydrophobic) coating |
| Glass tolerance | ±0.5 mm dimensional; curved radius deviation ≤0.15% | — |
| Frame profile | 6463 aluminum, anodized/powder-coated | Chrome, matte black, brushed gold, gunmetal (PVD) |
| Wall adjustment | Up to 20 mm per slotted wall profile | — |
| Hardware | SUS304 stainless / brass hinges, rollers, handles | PVD custom finishes, 72-h salt spray benchmarked |
| Sealing | Full-length magnetic strips + bottom deflector | Matching pre-sloped acrylic / SMC tray |
| Door handing | Reversible left/right on pivot & hinge models | — |
| Height | 1850 / 1900 / 1950 / 2000 mm | Custom heights for project orders |
| Packaging | Export carton + EPE + corner protectors; wooden crate for LCL | Room-set / per-unit labeling for projects |
Certificates prove a factory passed once. Batch consistency is what protects your margin. Our corner-enclosure QC runs as five linked checkpoints:
Glass raw stock, 6463 profile lots, and hardware checked against approved specification before entering the line.
CNC cutting dimensions, hole positions, curved radius, and edge polish verified at the workstation — deviations are corrected before tempering, because tempered glass cannot be reworked.
Door travel, magnetic closure, roller smoothness, and water-spray sealing checked on assembled units.
Labeling, protective material, and hardware kits counted and matched to the order — with per-room or per-SKU sorting for apartment projects.
Pre-shipment inspection (SGS/BV/TÜV or your nominated agent) can be coordinated before loading.
Whether you are building a private-label line or speccing 300 apartment bathrooms, the support structure matters as much as the product.
One factory, one accountability: enclosure, tray, wall panels, and hardware coordinated under one engineering team — so dimensional responsibility never gets passed between suppliers. Start an OEM / Project discussion.
Our one-stop package approach — enclosure, matching tray, wall panels, and hardware coordinated under one engineering team — is proven in overseas multi-family deliveries:
Coordinated supply of shower doors, wall panels, and custom shower bases with synchronized dimensions and finishes (including matte black hardware matched to base drains), packed per apartment set to eliminate on-site sorting and rework — a critical cost factor in high-labor-cost markets.
Read the case study
Export programs covering certified glass configurations (AS/NZS 2208 for the Australian market) and phased shipment scheduling for remote construction timelines.
Browse project gallery
Leakage is our top design priority in this category. Hinge areas use continuous water-deflecting profiles and full-length magnetic strike seals, bottom rails return run-off water into the shower zone, and assembled units go through a water-spray check before packing. Combined with matched pre-sloped trays, this system addresses the failure points that dominate negative reviews in this category.
We recommend 6 mm or 8 mm tempered glass. For Europe we configure to CE/EN12150-1 with EN14428 enclosure performance; for North America, SGCC/ANSI Z97.1; for Australia, AS/NZS 2208. Certification marks are permanently etched on the glass, and documentation support is provided for customs clearance and project review.
Yes. For risk-sensitive projects we offer Heat Soak Tested glass to EN 14179, an accelerated screening process that industry sources cite as reducing spontaneous breakage risk from nickel-sulfide inclusions to below 1 in 10,000 panels. Ask us to include the HST option in your quotation.
Yes. Most pivot and hinge corner models are fully reversible, so one SKU covers both handings. This simplifies installation, eliminates wrong-hand returns, and roughly halves the number of boxed variants you need to warehouse.
Our slotted wall profiles provide up to 20 mm of adjustment per side, and all glass holes are CNC pre-drilled to ±0.5 mm, so hardware aligns without site modification. Per-room labeled packaging and illustrated manuals keep two-person installation fast and repeatable across floors.
Yes. We manufacture matched, pre-sloped shower trays for our diamond and quadrant models, engineered from the same footprint drawing as the enclosure, so the water barrier and glass line align from the base upward — one supplier, one dimensional responsibility.
Standard production lead time is 25–35 days after drawing confirmation. MOQ and mixed-container options are flexible by model; OEM programs support custom PVD finishes, laser-etched logos, branded packaging, and test reports issued for your documentation. Contact us with your target quantity for a tailored plan.
Share your bathroom dimensions, target market, and quantity. Our engineering team will return a recommended geometry (diamond, quadrant, or square), a certified glass configuration, and a quotation — typically within 24 hours.
