A shower door drop test is the fastest way to prove that tempered glass, hardware, and export packaging can survive real handling before a container ever leaves the factory. This guide breaks down the 45 kg shot bag impact test behind CPSC 16 CFR 1201 Category II, how 620°C tempering produces 4–5× the bending strength of annealed glass, and the honeycomb-carton-plus-wooden-frame packaging system we have refined since 1999.
“Every crate arrived intact — the drop-test reports matched exactly what we saw on the dock.” — Sofia, Import Buyer
For e-commerce sellers on Amazon and Wayfair, a broken shower door is never just one lost unit. It is a return, a negative review, and a hit to the listing’s conversion rate.
Logistics damage is one of the most expensive failure modes in the category, and it happens long after the glass leaves the tempering furnace.
Glass and packaging are validated as a single unit — 45 kg shot bag impact on the panel, then corner, edge, and face drops on the finished carton — so the protection is proven before loading.
If you buy shower doors for hotel projects or wholesale distribution, the drop test is one of the few quality checks you cannot afford to skip.
A panel of tempered glass can look perfect on a spec sheet and still fail the first time a carton slides off a pallet or a fitter knocks a corner against a tile wall. A drop test is a controlled impact test where glass, either bare or inside its export packaging, is dropped or struck from a defined height onto a defined surface. The goal is simple: prove that the glass and its protection system can absorb the kind of shocks that happen in transport, warehousing, and installation.
There are really two different tests buyers mix up:
A serious supplier runs both. Glass that passes EN 12150 can still arrive broken if the carton is weak, and strong packaging cannot rescue glass that was badly tempered in the first place.
When a supplier claims the glass “passed the drop test,” the only claim worth anything is the one tied to a named standard and a traceable certificate. Our tempered shower glass is tested and documented against the four frameworks below, and a certificate copy ships with every order.
The US Consumer Product Safety Commission federal standard for architectural glazing. Shower doors fall under Category II, the highest impact class.
The American National Standard that details impact test procedures, specimen sizes, and pass/fail criteria for safety glazing used in buildings.
The independent US certification body that licenses laboratories to test glass to ANSI Z97.1 and CPSC 16 CFR 1201, then audits the certified plant on an ongoing basis.
The European conformity route for thermally toughened safety glass, with EN 14428 covering the finished shower enclosure as a product.
When a supplier says their glass “passed the impact test,” the useful follow-up question is: which standard, and at what level? In the US market, safety glazing in shower doors must comply with CPSC 16 CFR 1201, which uses a shot bag impact test.
A bag filled with lead shot, weighing about 45 kg (100 lb), swings against the glass from a set drop height. Category II, the level required for shower doors, uses a drop height of 457 mm (18 inches). ANSI Z97.1 uses a similar method and is widely referenced in project specifications.
Every shower door we ship uses tempered (toughened) safety glass, and there is a straightforward reason: ordinary annealed glass breaks into long, sharp shards that can cause severe injury in a wet, slippery bathroom. Tempered glass is heat treated so that, when it does fail, it crumbles into small, blunt granules instead of blades.
During tempering, the glass is heated to around 620 degrees Celsius and then cooled rapidly with high-pressure air. The surfaces cool and contract faster than the core, which locks the surface into compression. That compressive layer is what gives tempered glass roughly four to five times the bending strength of annealed glass of the same thickness.
Tempering quality is verified with the fragmentation test. A specimen is broken deliberately, and inspectors count the crack-free particles in a 50 x 50 mm zone. EN 12150 requires at least 40 particles per 50 x 50 mm area for standard shower thicknesses (4 to 12 mm). A high particle count means the glass has been properly tempered and will break into small, blunt granules rather than long, cutting shards. Fewer particles than the threshold signals under-tempering, and that batch does not ship.
Thickness alone does not guarantee survival in a drop test. Edge quality matters just as much: chips or micro-cracks left by poor grinding become the starting point of a break under impact. That is why we arris and polish every edge before tempering, never after.
Three methods dominate shower glass testing. Each answers a different question, so buyers should know which one a report refers to.
| Test method | Typical standard | How it works | What it proves |
|---|---|---|---|
| Shot bag impact | CPSC 16 CFR 1201, ANSI Z97.1 | A 45 kg (100 lb) lead-shot bag swings into the glass from a 457 mm Category II drop height | Safe behavior under body-weight impact, the key test for bathroom glazing |
| Fragmentation test | EN 12150-1 | The specimen is broken deliberately and particles in a 50 x 50 mm zone are counted | Tempering quality: breaks into small blunt granules, not shards |
| Ball drop test | Various in-house and EN 12600-style methods | A steel ball of known weight drops freely onto the glass surface from increasing heights | Surface impact resistance, useful for comparing glass batches and coatings |
One practical note on the ball drop test: it is fast and cheap, which makes it ideal for batch sampling on a production line. It does not replace the shot bag test for certification, but it catches weak tempering or edge damage early, before the glass reaches the packing area.
In our experience, more project disputes come from missing test documentation than from actual glass failures. A one-page certificate with a traceable standard number is worth more than ten pages of marketing claims.
We have manufactured shower enclosures since 1999, and our testing routine has grown out of real warranty cases, not textbooks. A typical weekly protocol looks like this.
The point of publishing this routine is not to sound impressive. It is to show that drop testing is a process, not a single photo of a hammer hitting glass. When you audit a supplier, ask to see sampling records with dates and batch numbers, not just one dramatic test video.
Based on 25+ years of tempered glass production and packaging experience, one pattern never changes: glass rarely fails in the middle of a panel. It fails at corners and edges, and it fails in transit when packaging is weak. That is why we test finished, packaged units, not just lab samples.
For export orders, the packaged drop test often matters more than the glass test. A hotel project in Texas or a distributor warehouse in Rotterdam means weeks of vibration, forklift handling, and at least one moment where a carton gets dropped harder than anyone admits.

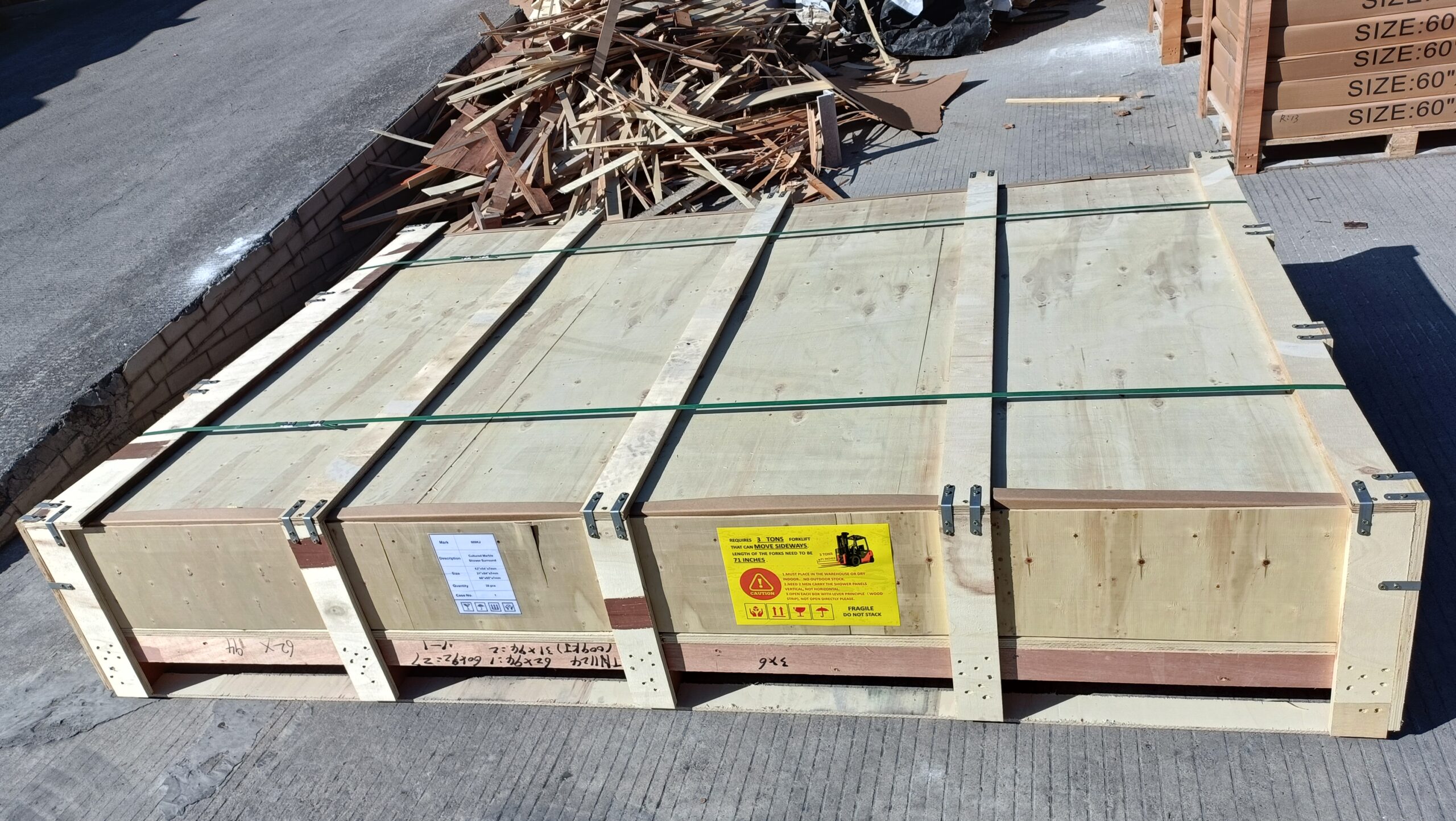

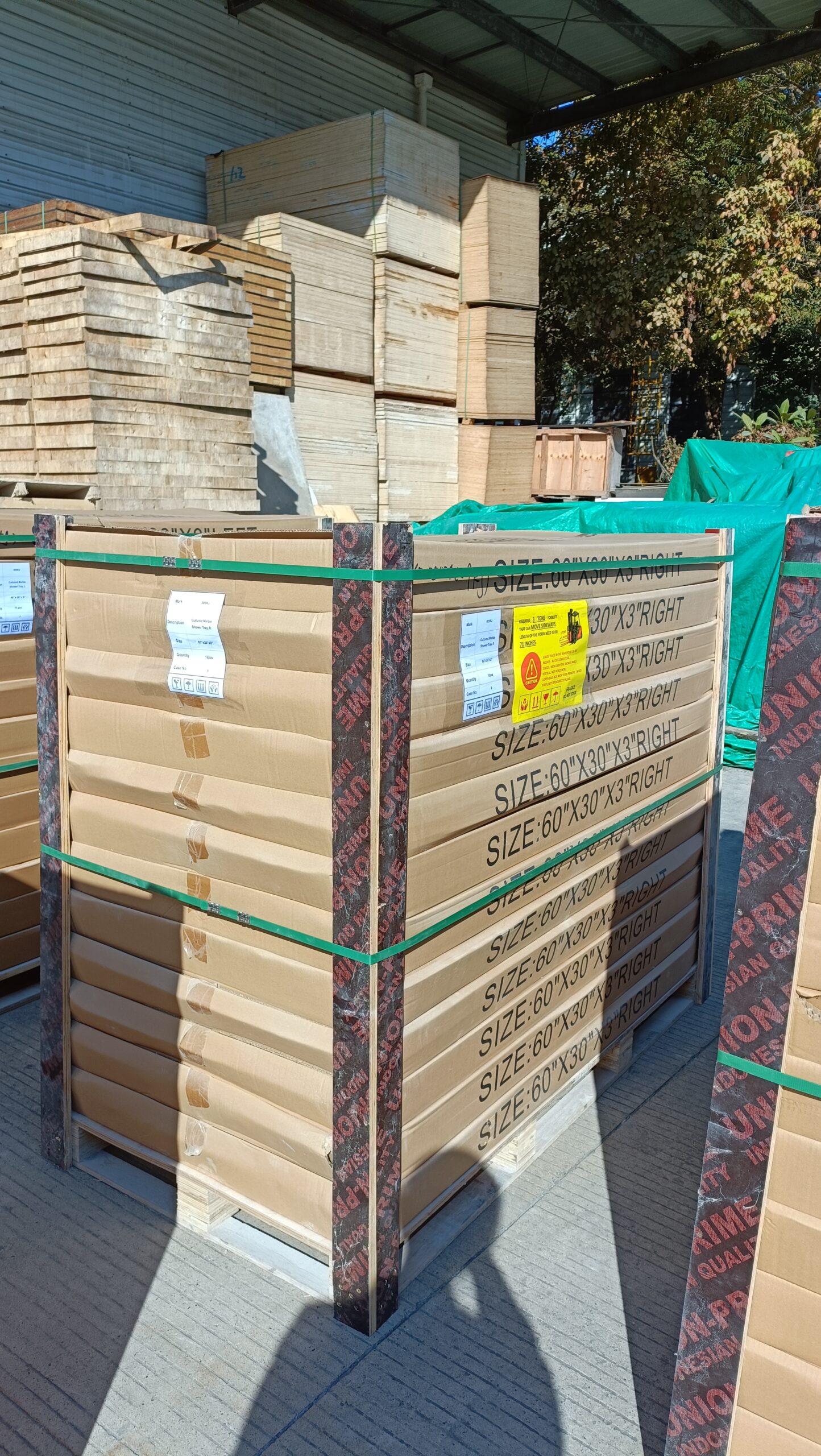

Our export packaging is a standardized honeycomb carton plus a reinforced wooden frame, assembled on our automatic packaging line, and every run is validated with drop tests tuned to glass:
Why this matters for e-commerce sellers: on Amazon and Wayfair, the logistics damage rate is what drives returns and negative reviews. Drop-validated honeycomb cartons and reinforced wooden frames lower that damage rate, which protects your margin and your listing on every shipment.
A simple field check for buyers: when your first shipment arrives, inspect carton corners before signing. Crushed corners with intact glass mean the packaging did its job. Intact cartons with broken glass usually point back to the glass itself or to poor internal separation.
Whether you source for a 300-room hotel or a regional wholesale program, these questions separate serious factories from trading companies with a test video.
A factory that tests seriously will answer these quickly, with documents. Vague answers at this stage tend to become expensive emails later. If you are sourcing shower enclosures for a hotel, wholesale, or e-commerce program, send us your project and channel details and we will share the relevant test reports and packaging specification.
Six questions our buyers ask most often – covering drop test versus shot bag test, certification, glass thickness, supplier verification, and e-commerce packaging. Tap a question to read our standard answer.
For quality inspectorsYes. Certification covers the glass type, not every production batch. Tempering quality drifts with furnace conditions, glass thickness, and edge finishing, so batch-level drop and fragmentation testing is what keeps certified performance consistent in real shipments.
For project buyersA shot bag test, defined by CPSC 16 CFR 1201 and ANSI Z97.1, simulates a person falling against the glass and is the formal safety test. A drop test usually refers to dropping the packaged product or dropping a weight such as a steel ball onto the glass. They answer different questions and good factories run both.
For installersIt can. Nickel sulfide inclusions, edge damage during installation, or hardware over-tightening can cause spontaneous breakage months later. This is why edge polishing quality and correct installation torque matter as much as the lab test results.
For hotel developersBoth pass the same safety standards when properly tempered. Ten millimeter glass offers more rigidity for frameless designs, while 8 mm is lighter and easier on hinges over thousands of open-close cycles. The safer choice is the one matched to the door configuration and hardware, not simply the thickest option.
For importersAsk for batch sampling records with dates, photos of the drop station, and a live video call during a test if you are placing a large order. Reputable factories treat this as a routine request, not an insult.
For e-commerce sellersDrop-validated packaging – a standardized honeycomb carton plus a reinforced wooden frame, tested with corner, edge, and face drops – lowers the logistics damage rate that drives returns and negative reviews on Amazon and Wayfair. Fewer broken units means fewer replacement shipments and protected margin on every order.
